Model	MT509	MT514	MT518
Rated Loading (kg)	500	500	500
Lifting Speed (m/min)	9	14	18
Lifting Motor Power (kw)	1.5	1.8	2.2
Wire Rope Dia. (mm)	8.3	8.3	8.3
L*W*H (mm)	840*453*620	840*453*620	840*453*620

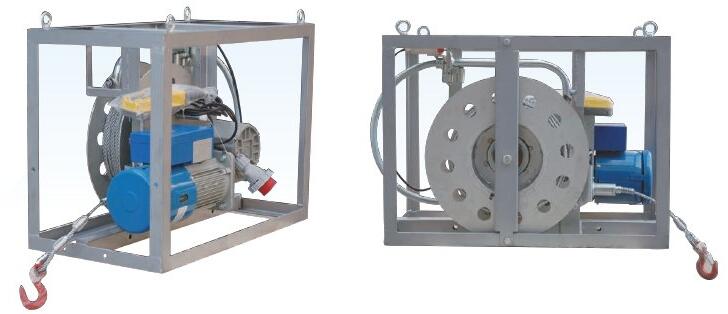

With its compact frame ,the winch is lighter ,smaller and more economic.It can lift the materials at a stable speed which is better than normal winch.Its power can be done as customer’s requirement.It have a hoist,a drum with 100m wire rope,a electrical control box,a hand manual operation box.

Wire rope winch’s features as below:
♠The wire rope reeler is driven by the hoist with stable lifting speed 9m/min or 14m/min or 18m/min .
♠Wire rope limited switch .When the wire rope arrives at the end position,the switch will work and stop  lifting the materials.
♠End of wire rope sensor.
♠Mechanic overload limited device(Optional). In our factory  we can adjust the limited loading as your requirement,but usually the loading should be not more than 500kg.
♠Castor wheels to allow easier movement(Optional).If not need wheels,sometime you can install the wire rope winch on some lifting device or equipment as a key driving unit.
♠Wireless controller(Optional).You can control the mobile winch from a romote places in a range .

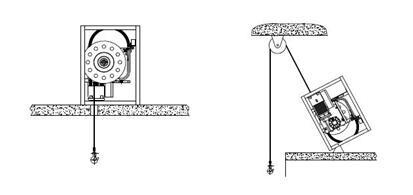

Application of mobile wire rope winch:
