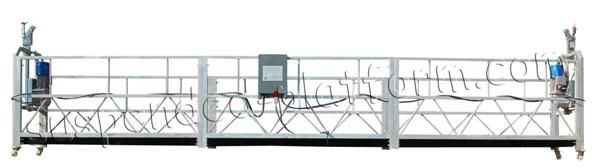

Suspended scaffold ZLP800

ZLP800, as temporarily installed suspended access equipment, is applicable to a loft  working, which is a substitute of traditional scaffold used in exterior wall construction, decoration, cleaning and maintenance of high buildings. That is a good choice for façade engineering group and as one professional suspended platform manufacturer, we can supply the package solutions for your high buildings exterior works.It is specially suitable for working when need lifting many heavy materials on the working platform.

The hoister adopts “a” structure and equipped with 1.8 kw motor and light and also features of easy operation.

Technical parameters of suspended scaffold ZLP800

TypeZLP800
Rated Loading800kg
Lifting Speed9.0m/min
Voltage-3phase380V(415V/220V)
Frequency50Hz/60Hz
Rated Power1.8x2
Hoist ModelLTD80
Safety Lock ModelLSF309
Wire Rope4x31SW+FC-9.1mm
Platform Size
(LxWxH)
(2.5x3)x0.76x1.45m
Weight Of Suspension
Jibs
340kg
Weight Of Lifting Parts520kg(Steel),340kg(aluminum)
Counter Weight1000kg
20' GP Qty of
Package
9Sets
