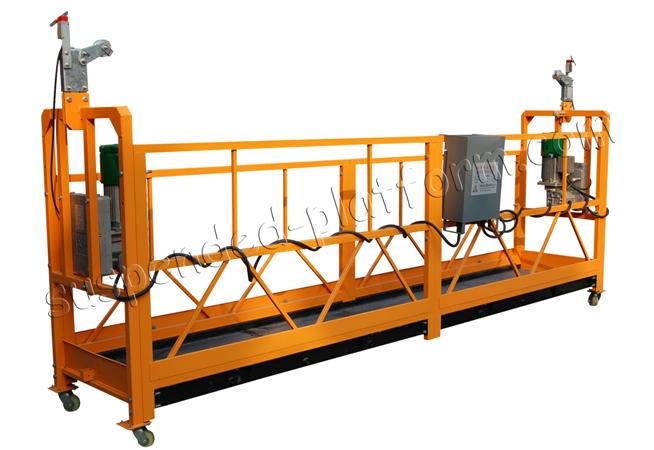

Suspended Access Equipment ZLP500

Suspended access platform ZLP500 has wide applications at different sites, such as cladding, aluminum glazing, sandblasting, high pressure cleaning external wall, construction decoration and welding at different working heights. In addition, this type suspended scaffolding with good features such as light weight, small size, easy to transport and it can be made by painting steel, hot dipped galvanized steel and aluminum materials.

Technical parameters of access platform

TypeZLP500
Rated Loading500kg
Lifting Speed9.0m/min
Voltage-3phase380V(415V/220V)
Frequency50Hz/60Hz
Rated Power1.1x2
Hoist ModelLTD50
Safety Lock ModelLSF308
Wire Rope4x31SW+FC-8.3mm
Platform Size
(LxWxH)
(2.5x2)x0.76x1.45m
Weight Of Suspension
Jibs
340kg
Weight of Lifting Parts410kg(Steel),290kg(Aluminum)
Counter Weight800kg
20' GP Qty of
Package
10Sets
